Glass Staircases for Architectural and Hospitality Projects
Source glass staircases for architectural and hospitality projects through Sibolla, a one-stop project supplier with its own factory and specialist production partners. We coordinate glass build-ups, tread spans, support details and surface finishes with your project team.
Types of Glass Staircases Customize

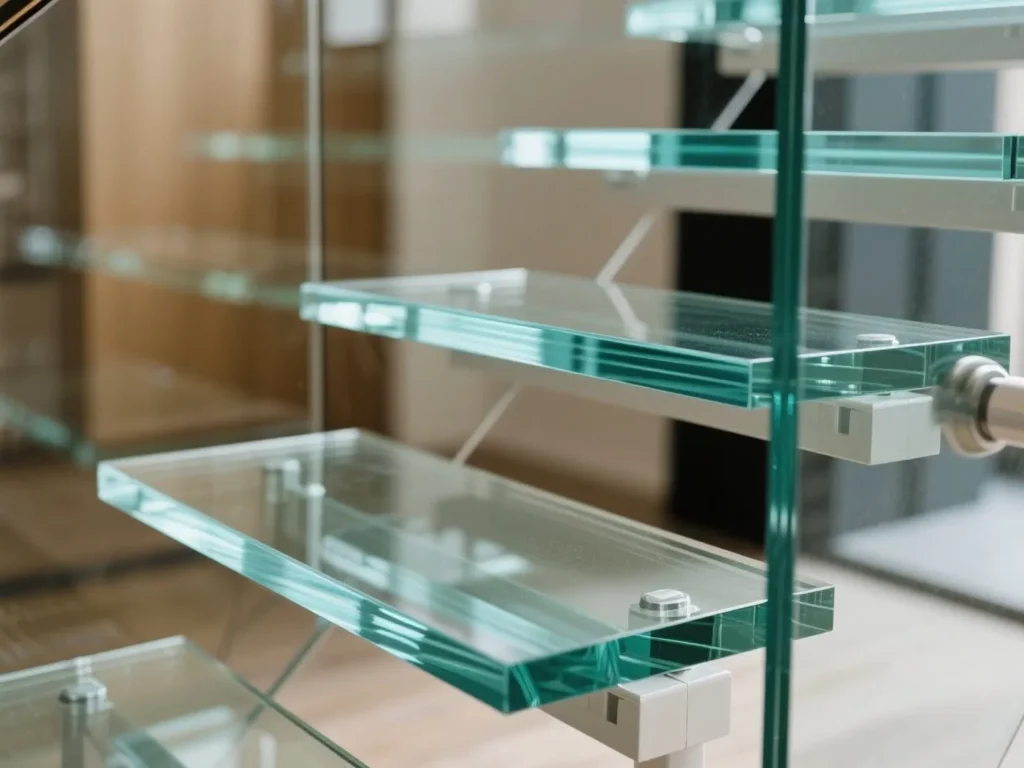

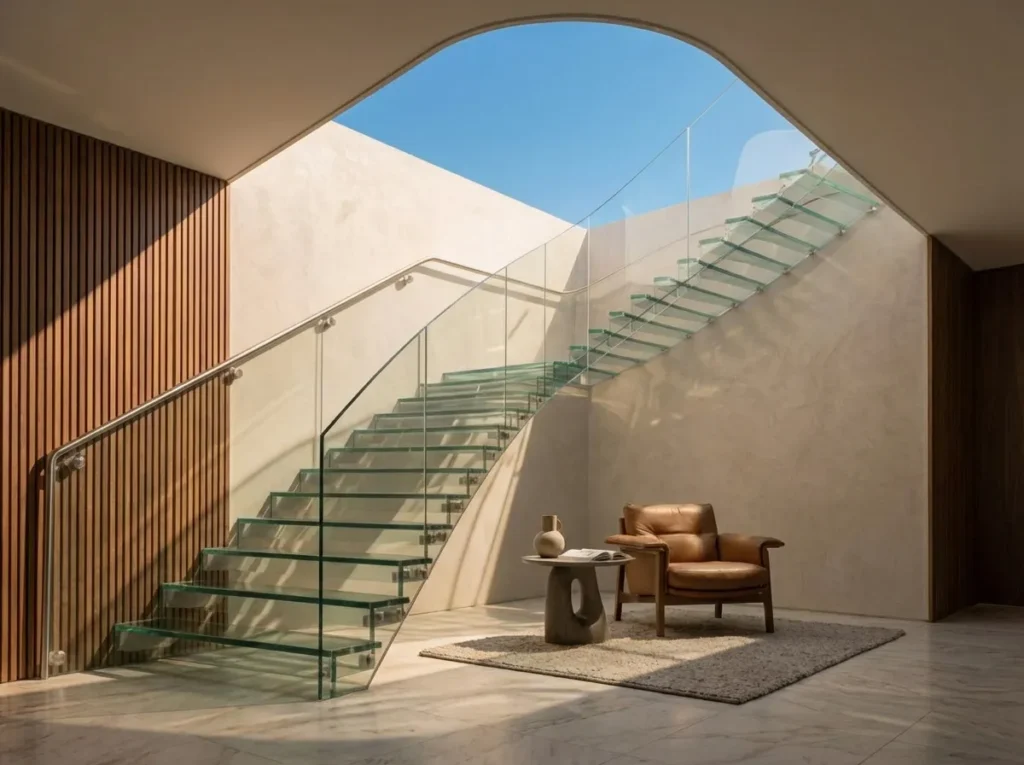

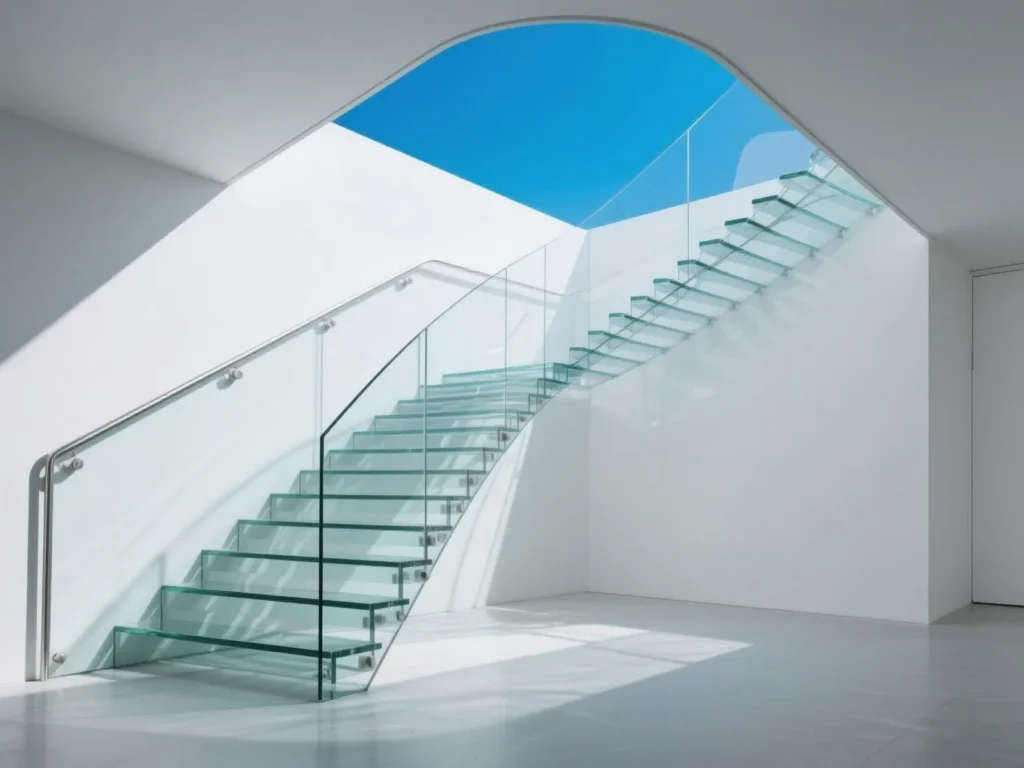

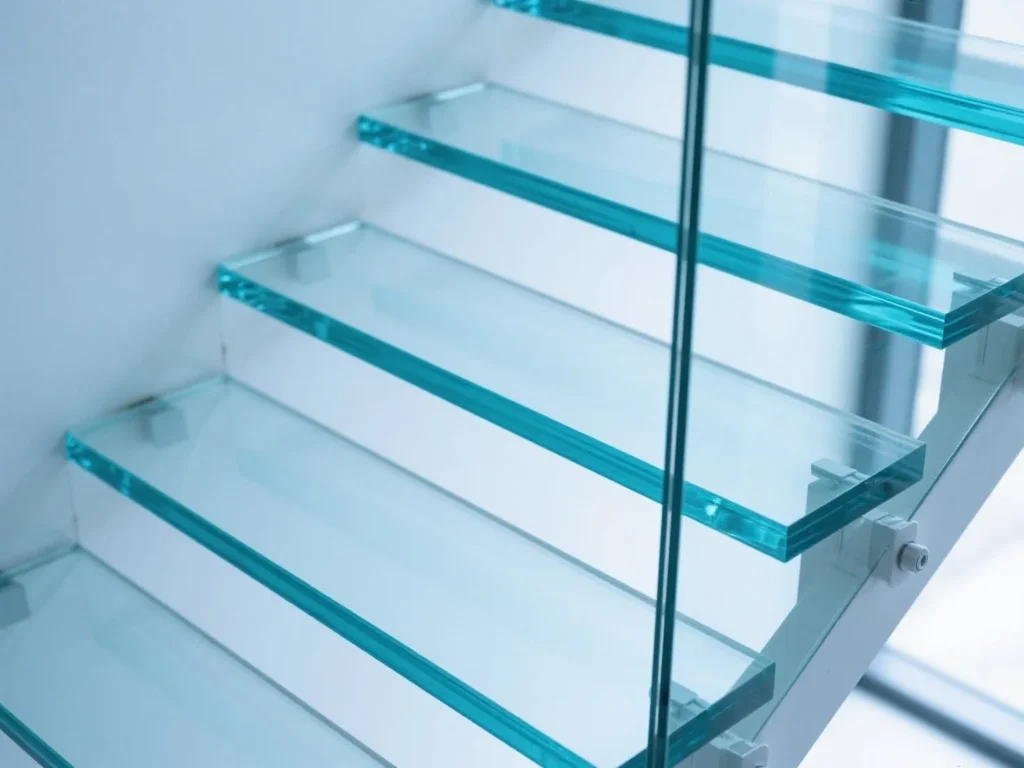

Full Glass Staircase
A full glass staircase is engineered with glass treads, supports, beams, and balustrades, using minimal metal fittings to achieve maximum visual transparency.
- Pure Transparency: Clean lines enhance daylight penetration and create a spacious architectural atmosphere.
- Easy Maintenance: Smooth surfaces allow quick cleaning and long-term clarity with routine care.
- Structural Safety: Built from laminated and tempered safety glass to provide reliable load-bearing strength and durability.

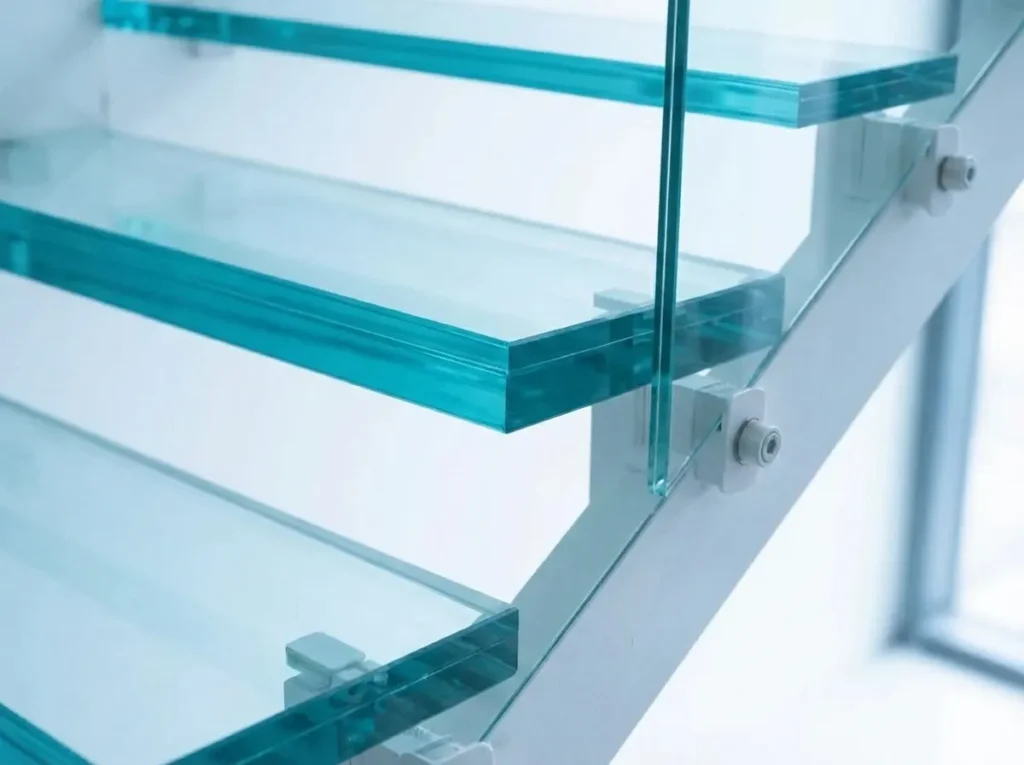

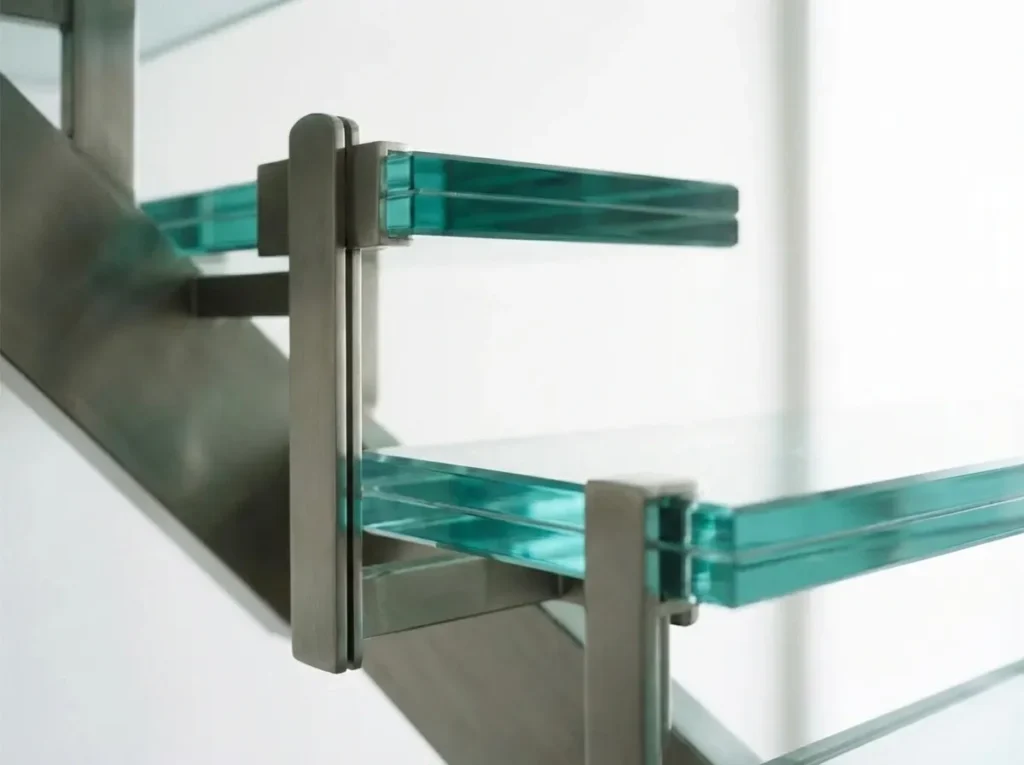

Steel Frame Glass Staircase
A steel frame glass staircase integrates structural steel beams with transparent glass treads and railings, delivering high load capacity with a modern architectural appearance.
- Structural Stability: Steel framework ensures strong support and reliable long-span performance.
- Balanced Aesthetics: Glass maintains openness while steel adds definition and contrast.
- Enhanced Safety: Laminated safety glass and engineered connections provide secure daily use and long service life.
Wood Frame Glass Staircase
A wood frame glass staircase combines natural timber structure with transparent glass components, balancing warmth and modern openness.
- Natural Warmth: Wood grain softens the visual feel while maintaining the clarity of glass.
- Comfortable Atmosphere: Creates a welcoming interior with both texture and brightness.
- Reliable Safety: Engineered tempered/laminated glass ensures stable structural performance.
Glass Staircase Supplier Guide
A glass staircase is a contemporary architectural feature defined by transparent treads and panels that visually “lighten” a space while maintaining structural strength. By allowing light to pass through, it expands visual depth and enhances interior brightness in both residential and commercial environments.
Engineered tempered or laminated glass integrates seamlessly with steel, wood, or stone components, adapting to straight, floating, or curved configurations. The result is a clean, minimal structure that functions as both circulation and architectural focal point.
For background on the glass material terminology, see the overview of tempered glass. The specified glass build-up and stair structure need separate engineering approval.
Glass railings and handrails further improve safety and openness, delivering a refined balance of durability, clarity, and modern aesthetics tailored to your design vision.

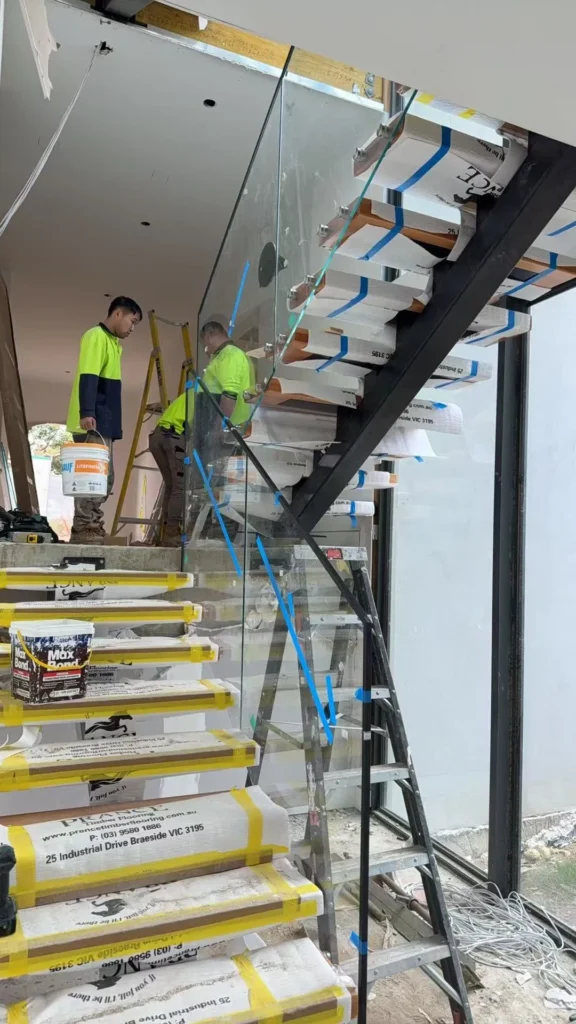

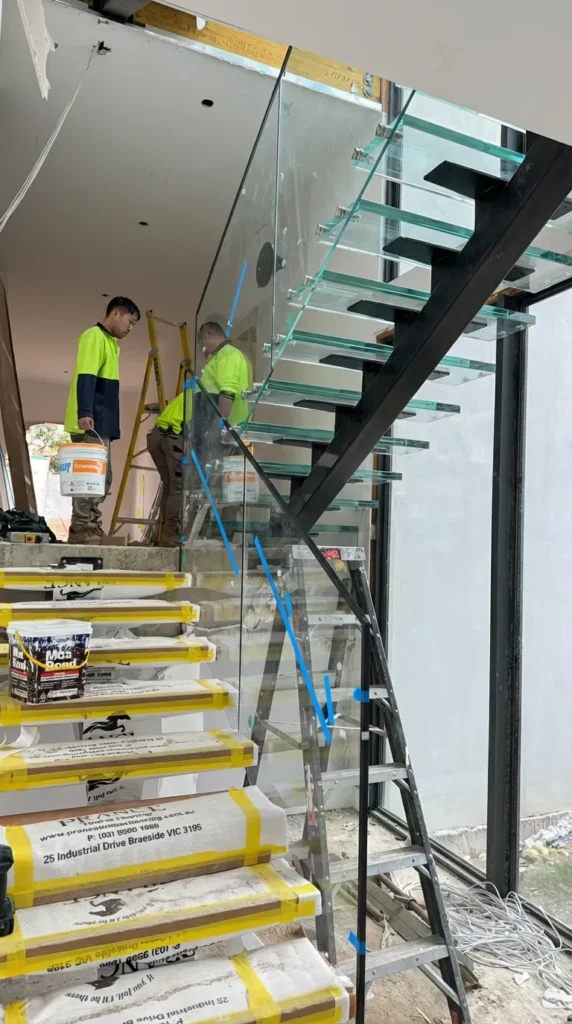

China Glass Staircase Installation Process & Techniques
Taking Our Showroom Installation as an Example
Using our showroom installation as a reference, the glass staircase is assembled step-by-step with strict dimensional control. The stainless-steel mono-stringer is positioned and leveled first, followed by secure mounting of laminated glass treads and low-iron glass balustrades.
Detailed welding, accurate alignment, and protected on-site handling ensure flawless transparency without scratches or stress marks. The result is a stable, cleanly finished installation that delivers both safety performance and refined architectural appearance.
Why Choose Sibolla as Your Glass Staircases Supplier
Integrated Glass Staircase System
Our glass staircase systems are engineered as complete structural assemblies — combining precision-fabricated glass panels, certified hardware fittings, and reinforced support frameworks for stability and durability.
Each component — treads, railings, anchors, wall supports, and optional lighting — is designed to work together seamlessly, ensuring safety, clean aesthetics, and easy installation.
Fully customizable to suit architectural layouts, our solutions deliver a refined fit for residential and commercial spaces.

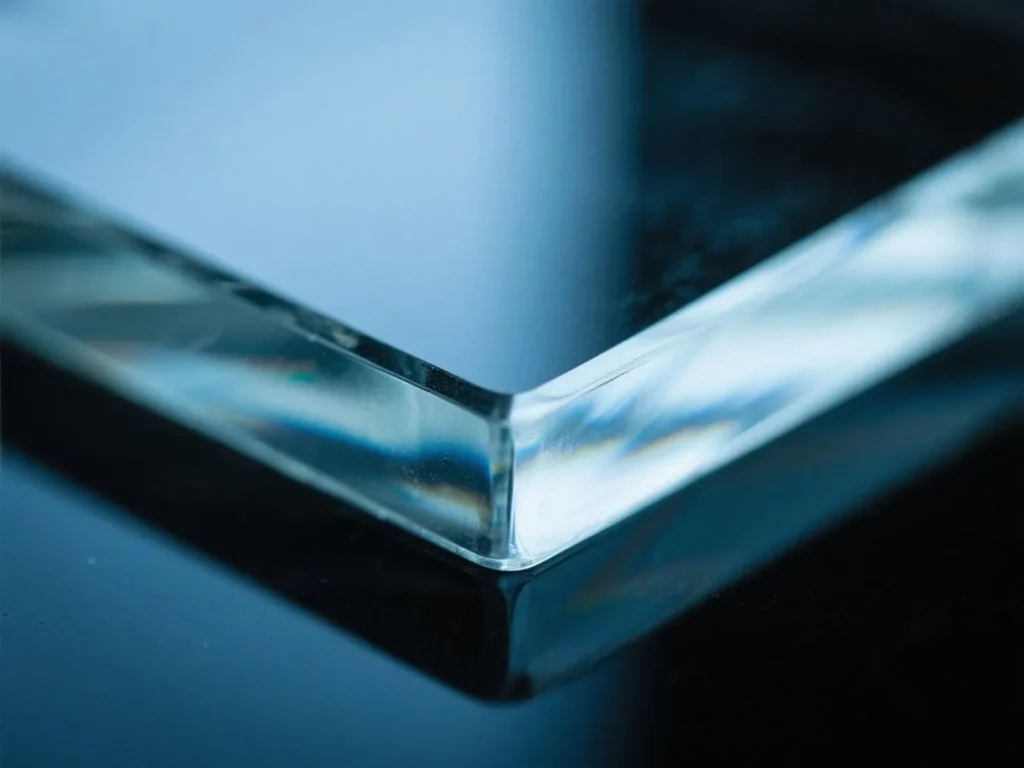

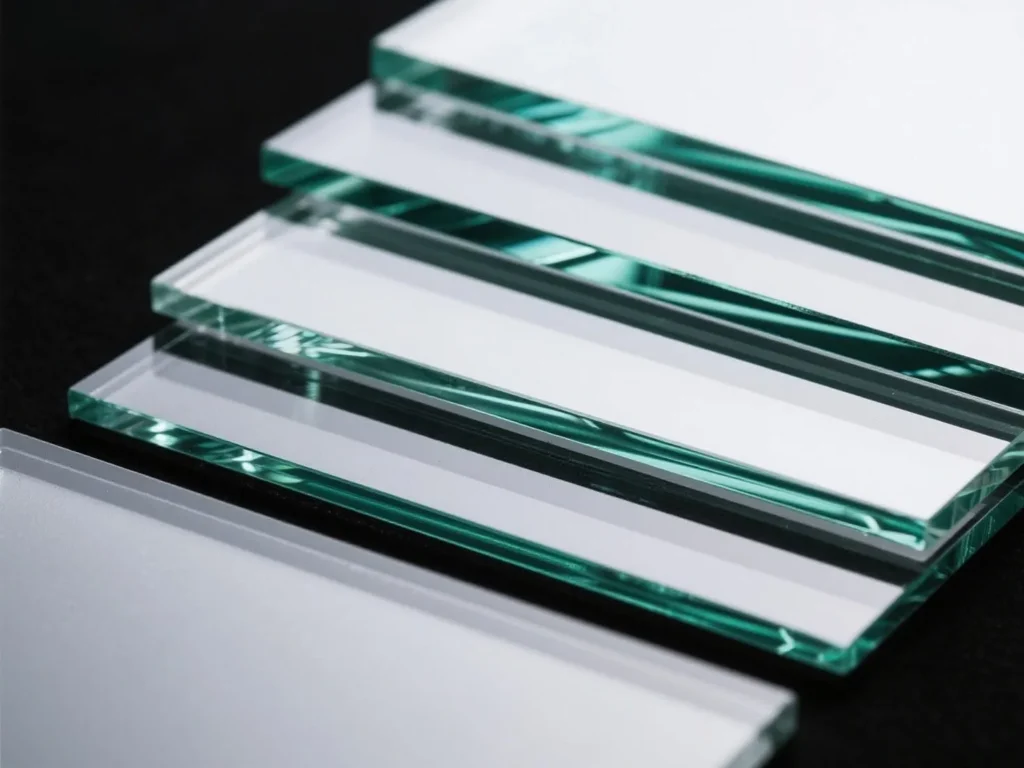

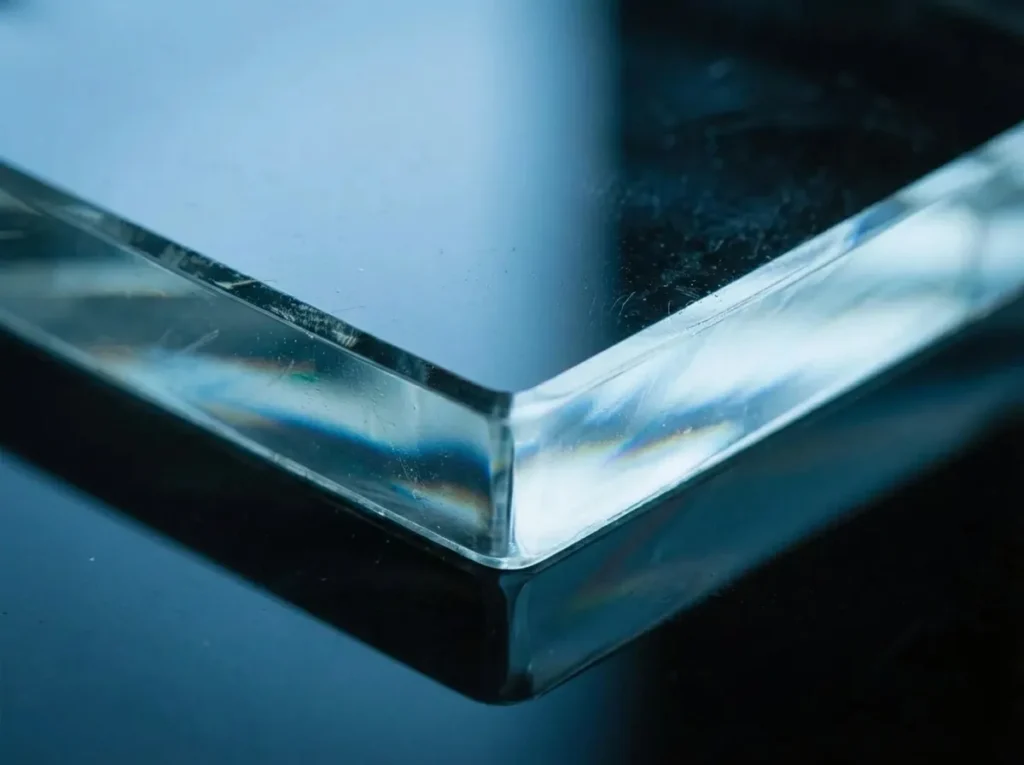

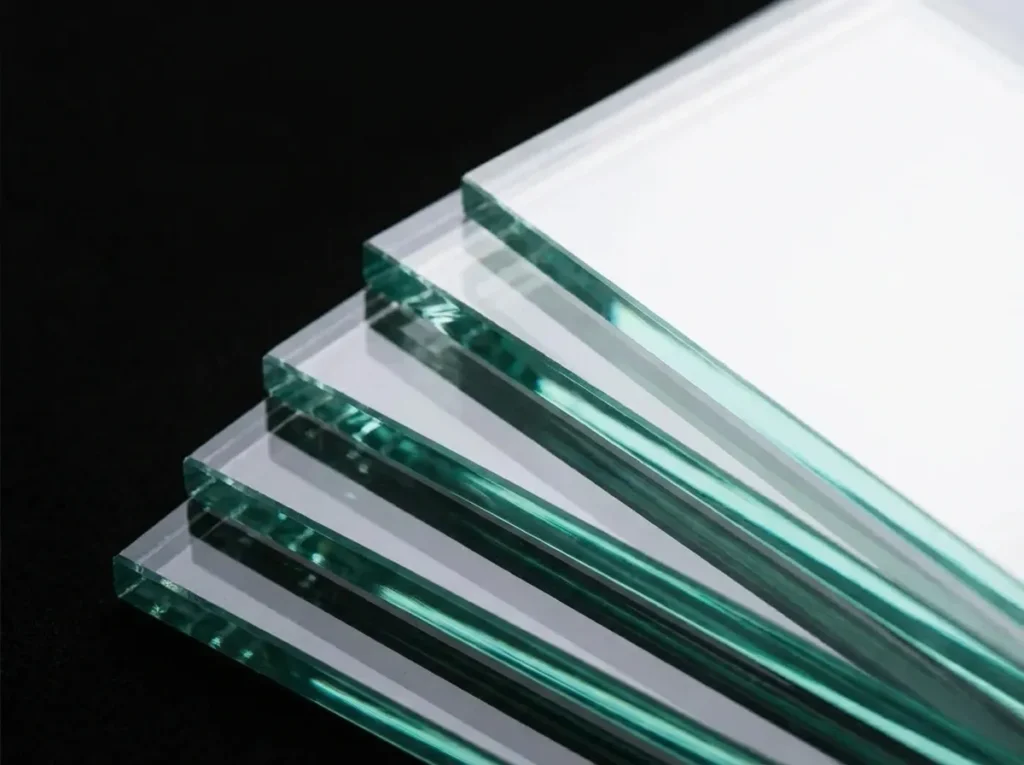

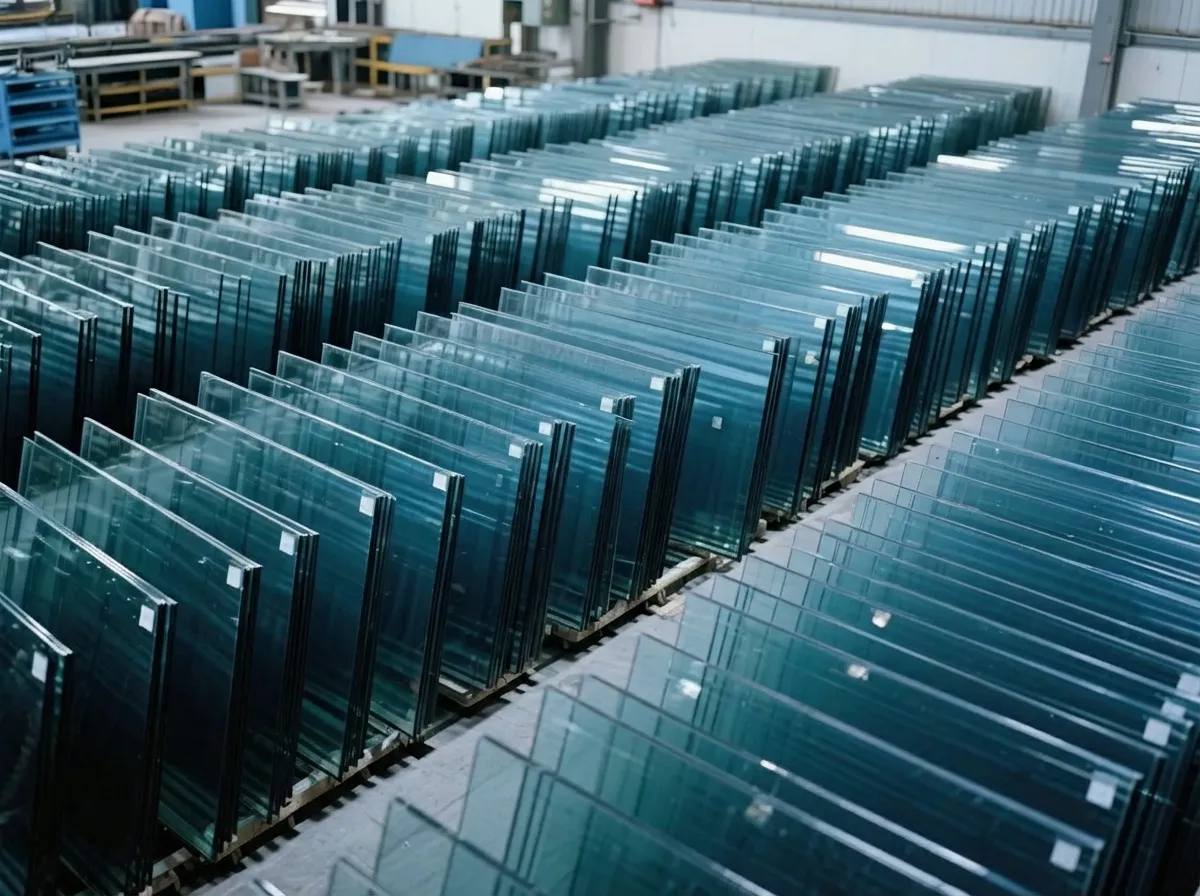

Glass Edge Finishing
Prepare the specified edges, holes, countersinks, notches and shapes before heat treatment. Confirm the final glass build-up and edge finish on the approved drawings. [3]
Every panel is finished for visual clarity, safety, and installation accuracy in both staircases and railing systems.
Anti-Slip Glass Treads
Our walking-surface glass panels feature integrated anti-slip treatments that balance safety and refined appearance. Multiple textures and surface finishes are available to meet project aesthetics while complying with international safety standards.
Designed for both glass staircases and railing systems, the solution improves traction without sacrificing transparency or modern design.
Core Performance Features

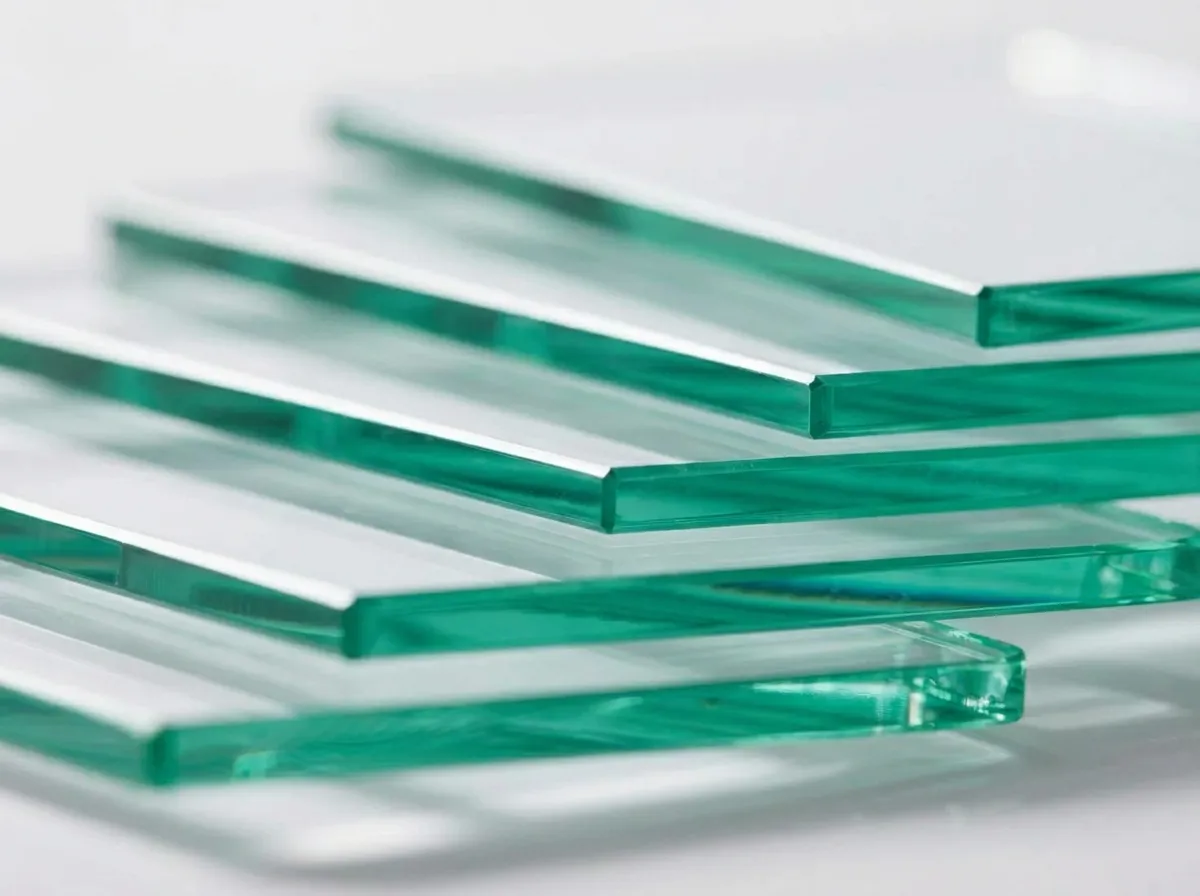

Low-Iron Ultra-Clear Glass
Manufactured from high-purity raw materials with tightly controlled iron content, the glass delivers exceptional clarity and true color transmission. Ideal for staircase treads and railings where transparency and premium visual quality are critical.
Glass Edge Preparation Before Heat Treatment
Specify the required edge condition and complete glass machining before heat treatment. Inspect the finished assembly against the approved drawings; do not use post-tempering grinding or drilling to correct dimensions. [3]

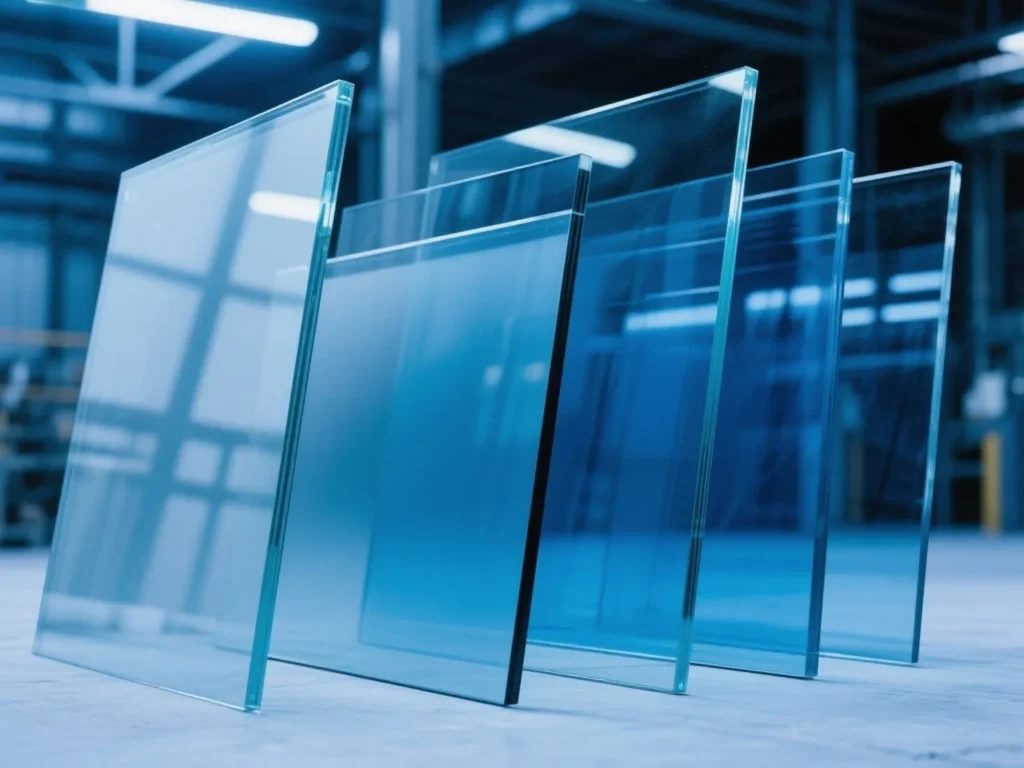

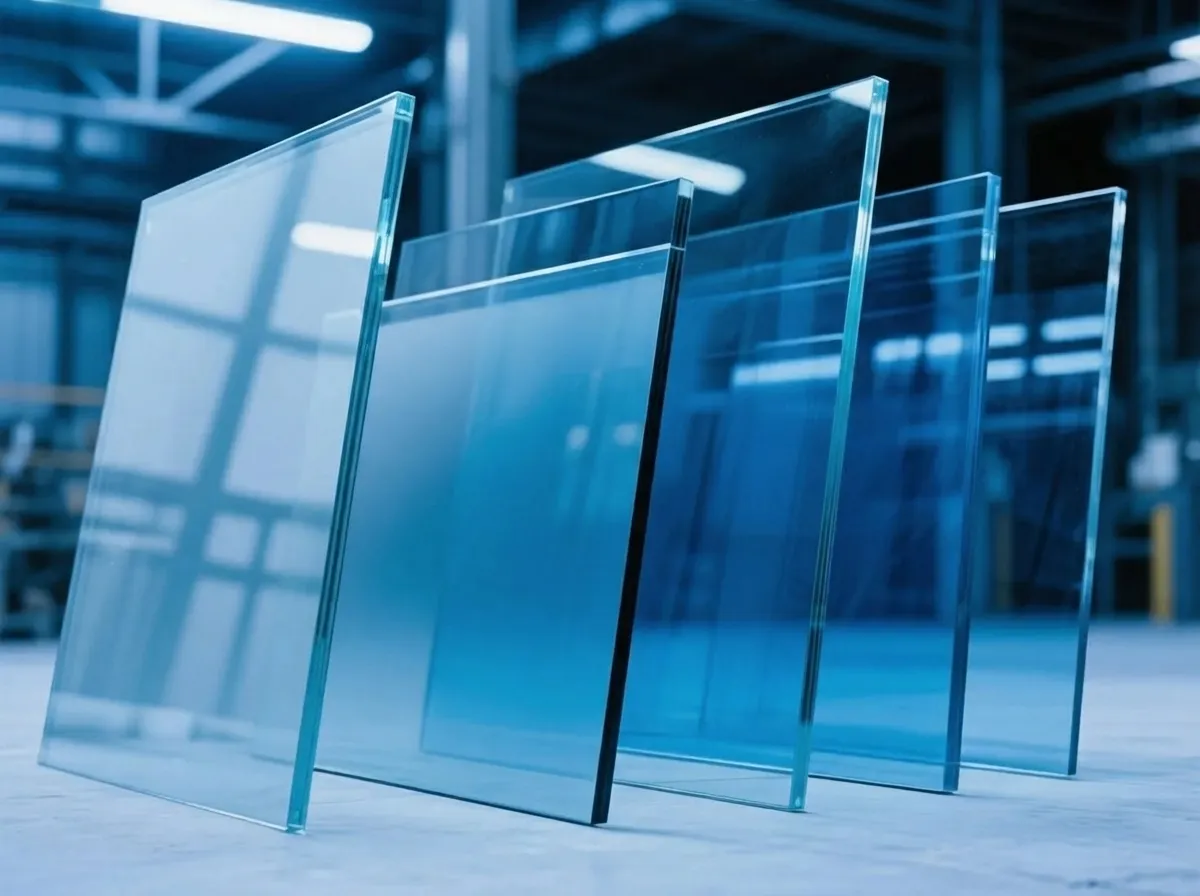

Thermal Strengthening Treatment
Glass panels undergo calibrated heat-tempering cycles matched to thickness and load requirements, significantly increasing impact resistance, structural stability, and long-term performance in staircase applications.
Specify the Complete Structural Glass Stair Assembly
Review the glass tread as part of its supporting system. Our factory team can coordinate the proposed glass build-up, metalwork and guard details with the project engineer.
- Engineered laminated build-up
- Bearing pads and supported span
- Walking surface and edge detail
- Guard system specified separately
Illustrative coordination sketch. Not to scale; not for construction.
| Component | Specify for engineering review | Supporting information |
|---|---|---|
| Glass tread / landing | Specify for engineering reviewPly build-up, interlayer, dimensions and intended span | Supporting informationProject calculations and required test evidence for the assembly |
| Supports and interfaces | Specify for engineering reviewBearing arrangement, pads, fittings and edge clearances | Supporting informationConnection drawings and compatibility with the glass system |
| Walking surface | Specify for engineering reviewSlip treatment, wear and cleaning requirements | Supporting informationSelected finish/sample and applicable performance evidence |
| Guard and handrail | Specify for engineering reviewSeparate glass/metal guard build-up and attachments | Supporting informationProject guard loads and connection details, not tread data alone |
ASTM E2751/E2751M addresses supported laminated glass walking surfaces and post-breakage behavior [1]. It does not certify this product. Glass thickness, supports and any required testing must be resolved for the project by the responsible professional.
Custom Glass Staircase Process
Glass combines remarkable strength with lightweight transparency and decorative appeal, making it a favored material for sophisticated interior staircase designs.
Step 1. Design Engineering
Using your CAD drawings or architectural plans, our engineers refine dimensions, load points, and connection details. Structural steel supports and precision stainless fittings are integrated to ensure safety while maintaining the clean floating appearance of tempered laminated glass treads and railings.

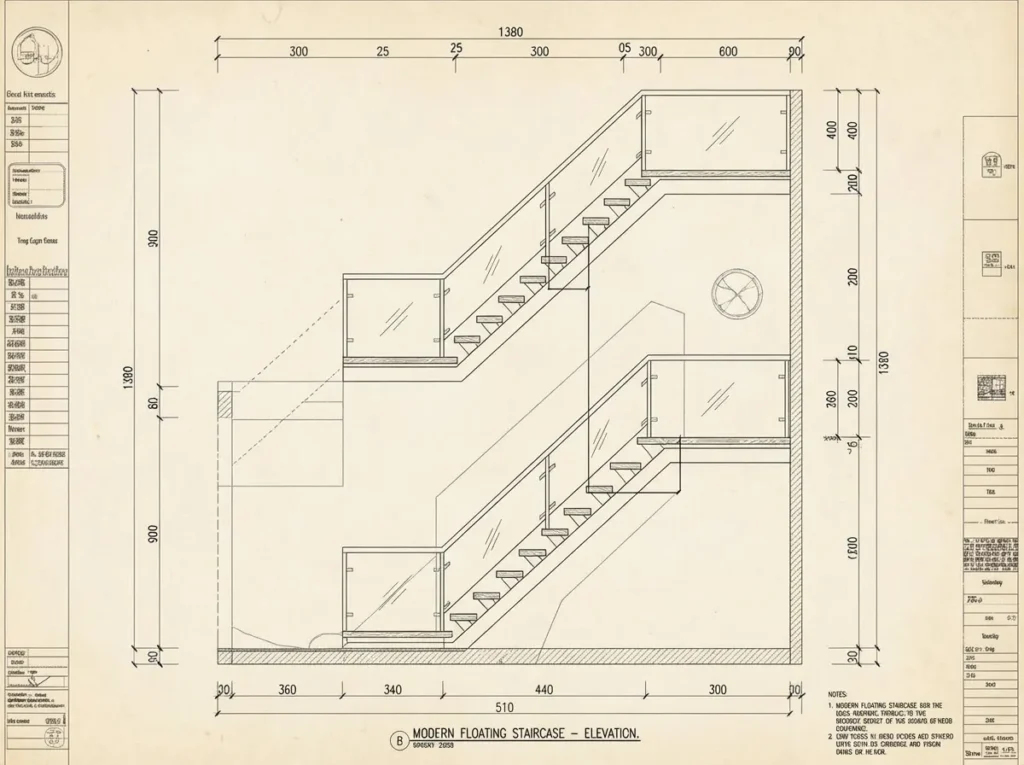

Step 2. Technical Shop Drawings
We produce detailed fabrication drawings including fixing methods, glass thickness calculations, railing interfaces, and tolerance control. All drawings are confirmed with the client or architect before manufacturing begins to prevent on-site conflicts.

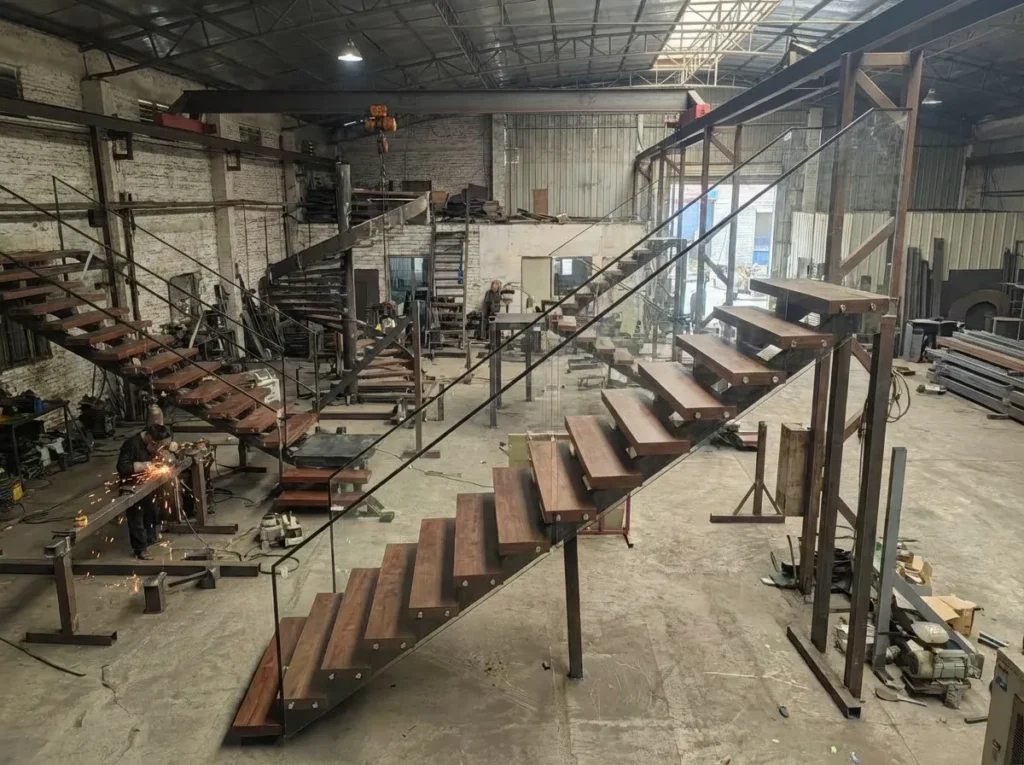

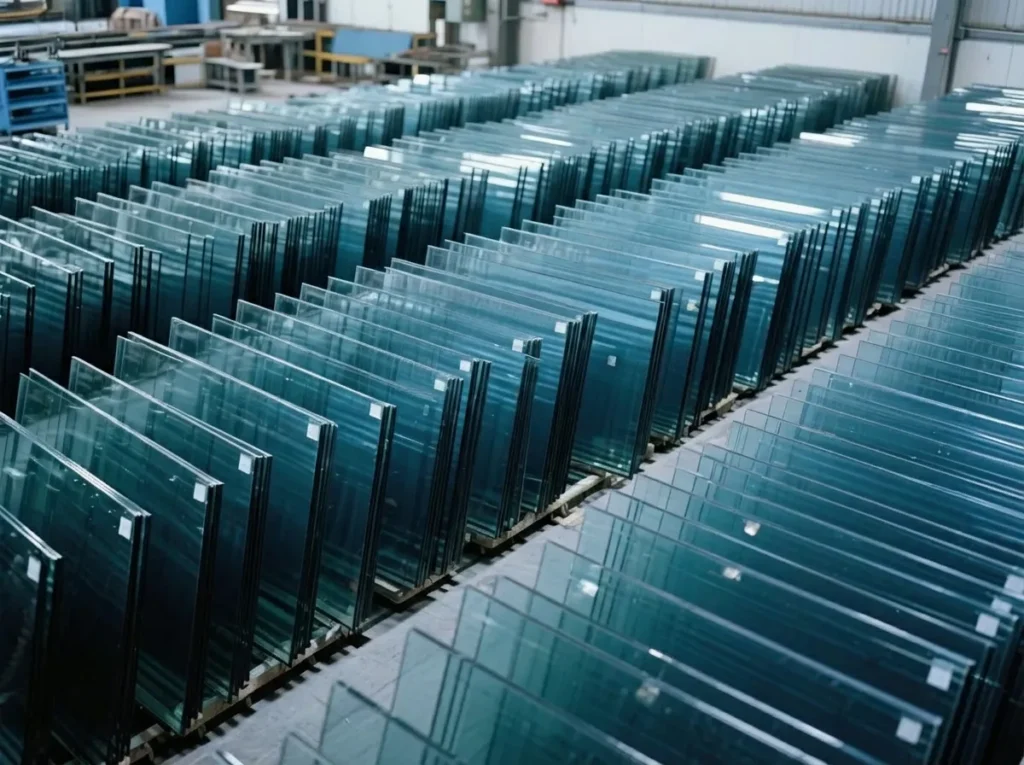

Step 3. Precision Fabrication
Glass panels are cut, drilled and edge-finished before heat treatment. The approved build-up determines the heat-treatment and lamination processes. Steel structures and hardware are coordinated with the glass dimensions and connection details. [3]

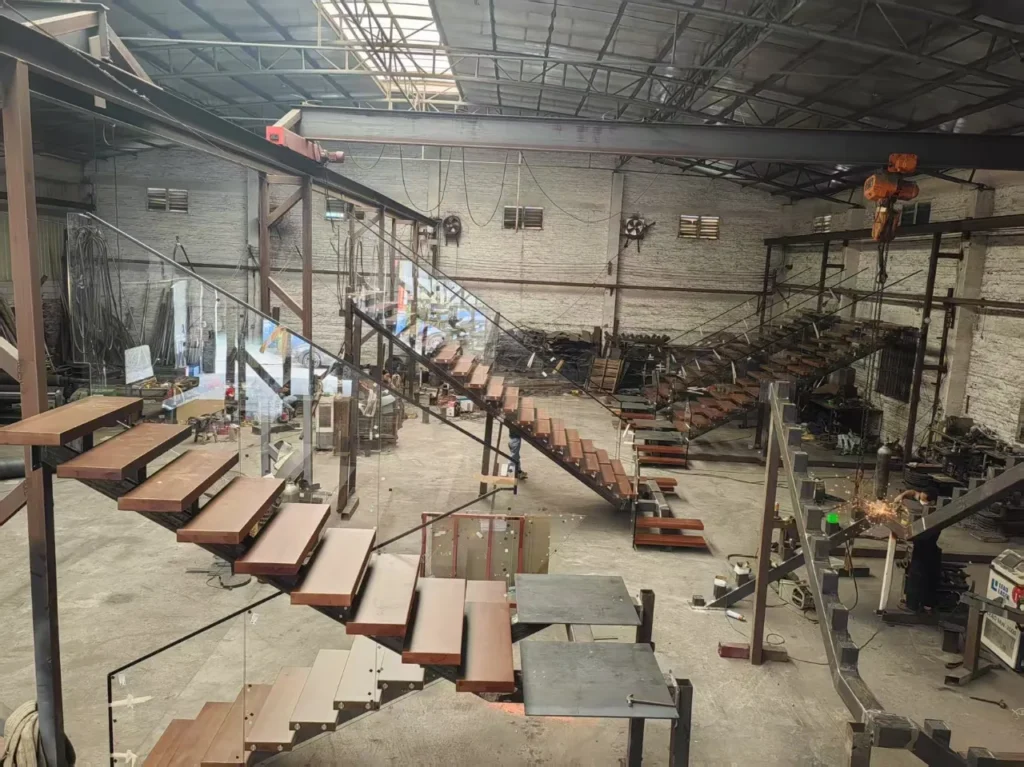

Step 4. Pre-Assembly & Quality Inspection
Before shipment, components undergo trial assembly and multi-stage inspection covering flatness, hole accuracy, load capacity, and surface finish. Each staircase is verified to meet structural and safety standards.

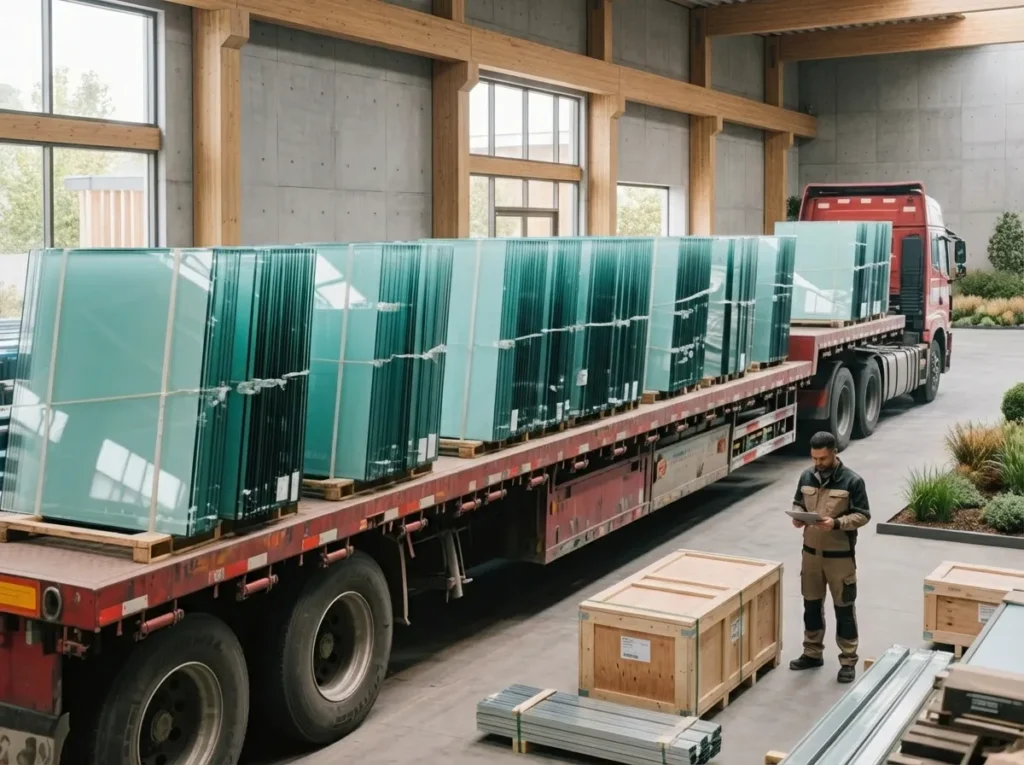

Step 5. Packaging, Delivery & Installation Guidance
All elements are carefully packed with protective separation and labeled for sequence installation. We provide installation drawings, videos, and remote technical support to ensure efficient and accurate on-site assembly.

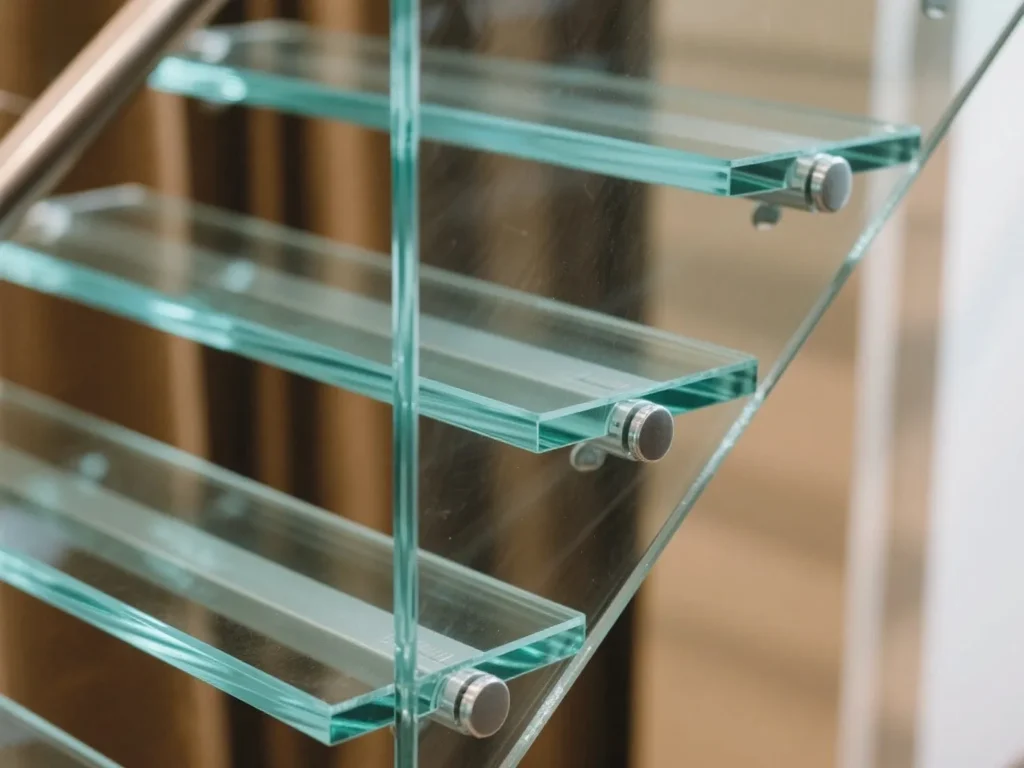

Glass Staircase Factory Installation Guidelines
Installing a glass staircase demands careful planning and meticulous attention to detail to guarantee structural integrity and safety. Below are essential guidelines to ensure a successful installation.

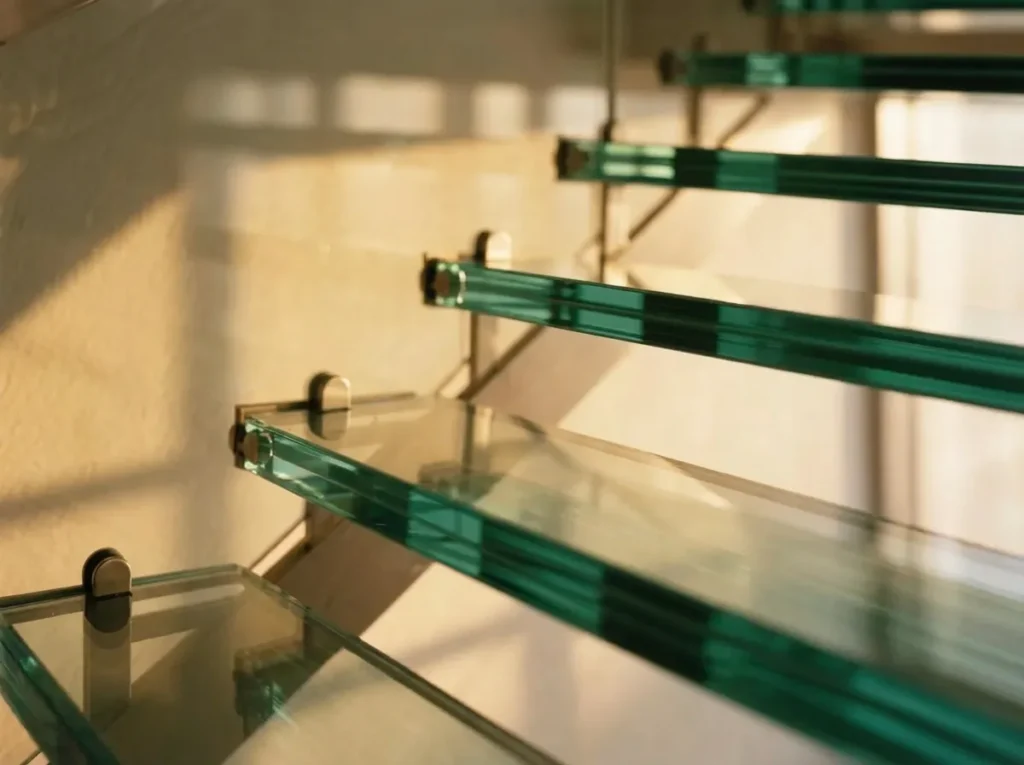

1. Preparation & Planning
- Site Check: Confirm the installation area is level, clean, and free of obstructions.
-
Drawing Review: Re-verify all approved drawings and dimensions before installation begins.
- Material Inspection: Examine glass panels and metal components to ensure no chips, cracks, or deformation.

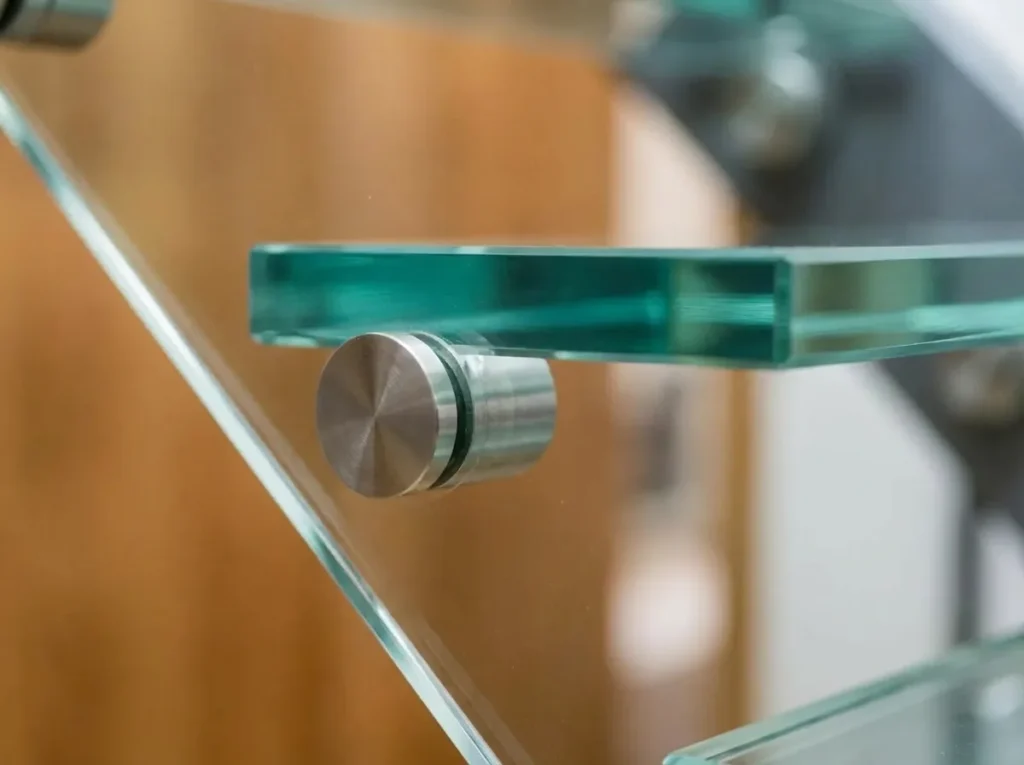

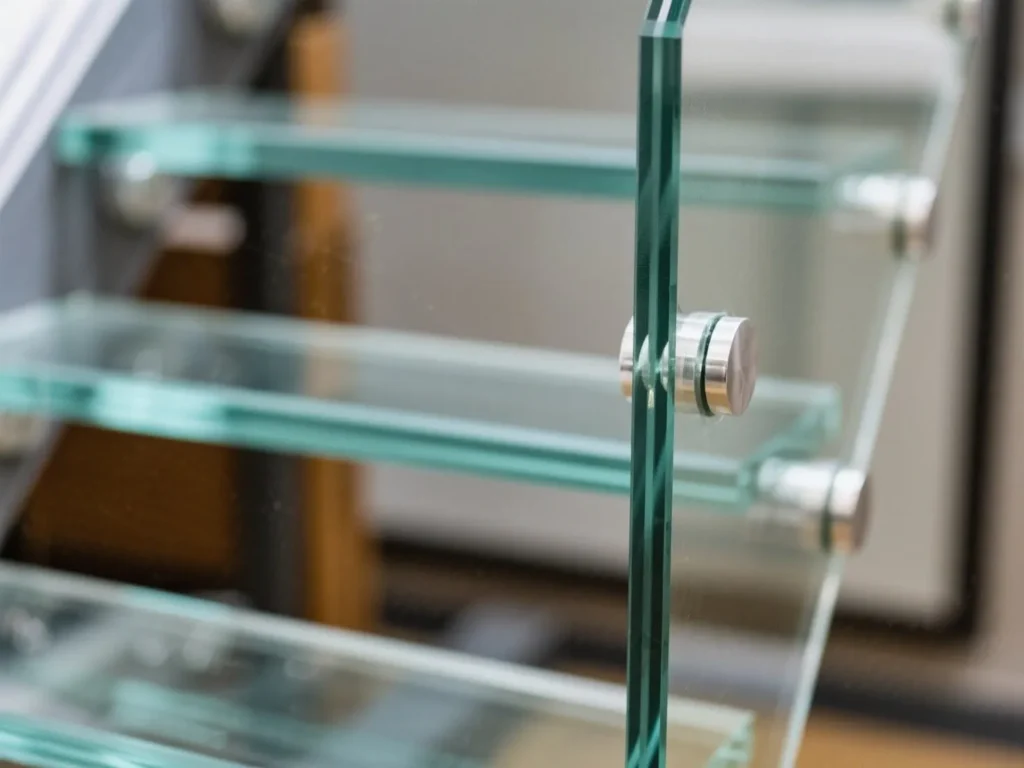

2. Structural Support Verification
- Load-Bearing Capacity: Ensure walls, beams, and anchors meet required structural strength.
- Fixing Positions: Confirm anchor locations match shop drawings to prevent stress concentration.
- Reinforcement Check: Install additional backing plates or embedded steel where required.
3. Glass Handling & Protection
- Safe Transport: Carry glass vertically using suction lifters; avoid dragging or edge impact.
- Edge Protection: Keep protective films and corner guards in place during installation.
- Clean Work Area: Prevent debris from scratching laminated or tempered surfaces.

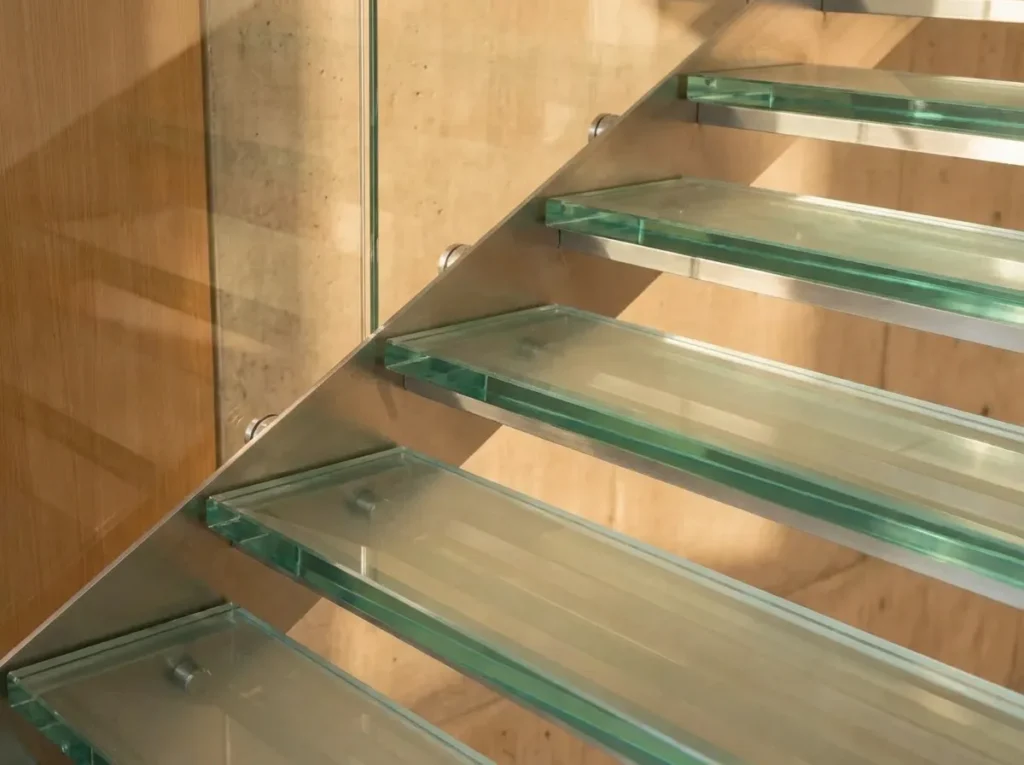

4. Installation Accuracy Control
- Level & Alignment: Install treads and panels sequentially, checking plumbness and spacing tolerance.
- Proper Fastening: Tighten bolts gradually and evenly to avoid uneven pressure on glass.
- Sealant Application: Apply rubber gaskets and sealants correctly to reduce vibration and noise.
5. Safety Measures During Installation
- Protective Equipment: Installers should wear gloves, helmets, and anti-slip footwear.
- Temporary Barriers: Secure surrounding areas to prevent unauthorized access.
- Controlled Lifting: Use mechanical lifting equipment for large panels to avoid sudden stress.
6. Final Inspection & Maintenance Advice
- Completion Check: Verify stability, connection tightness, and smooth walking comfort.
- Surface Cleaning: Remove protective film and clean glass using non-abrasive materials.
- User Guidance: Provide maintenance instructions and recommend periodic hardware inspection.

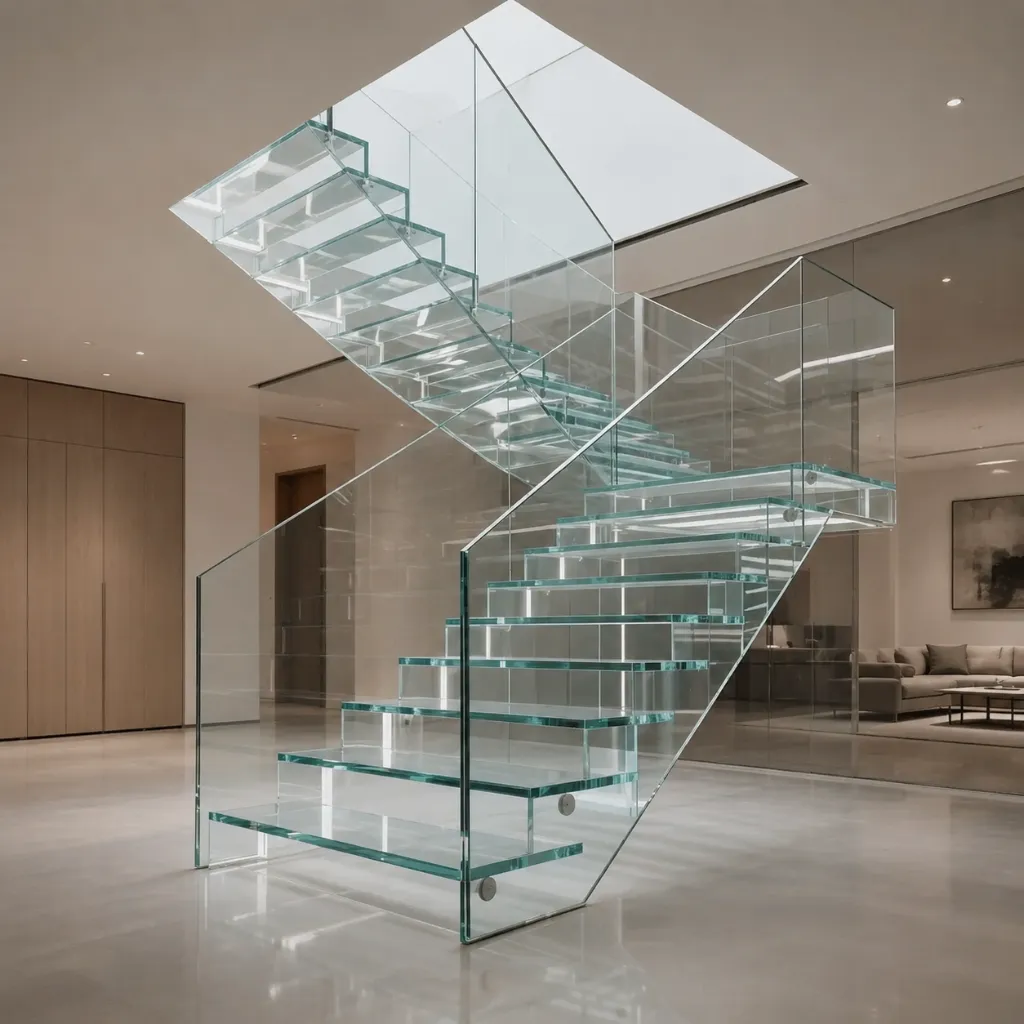

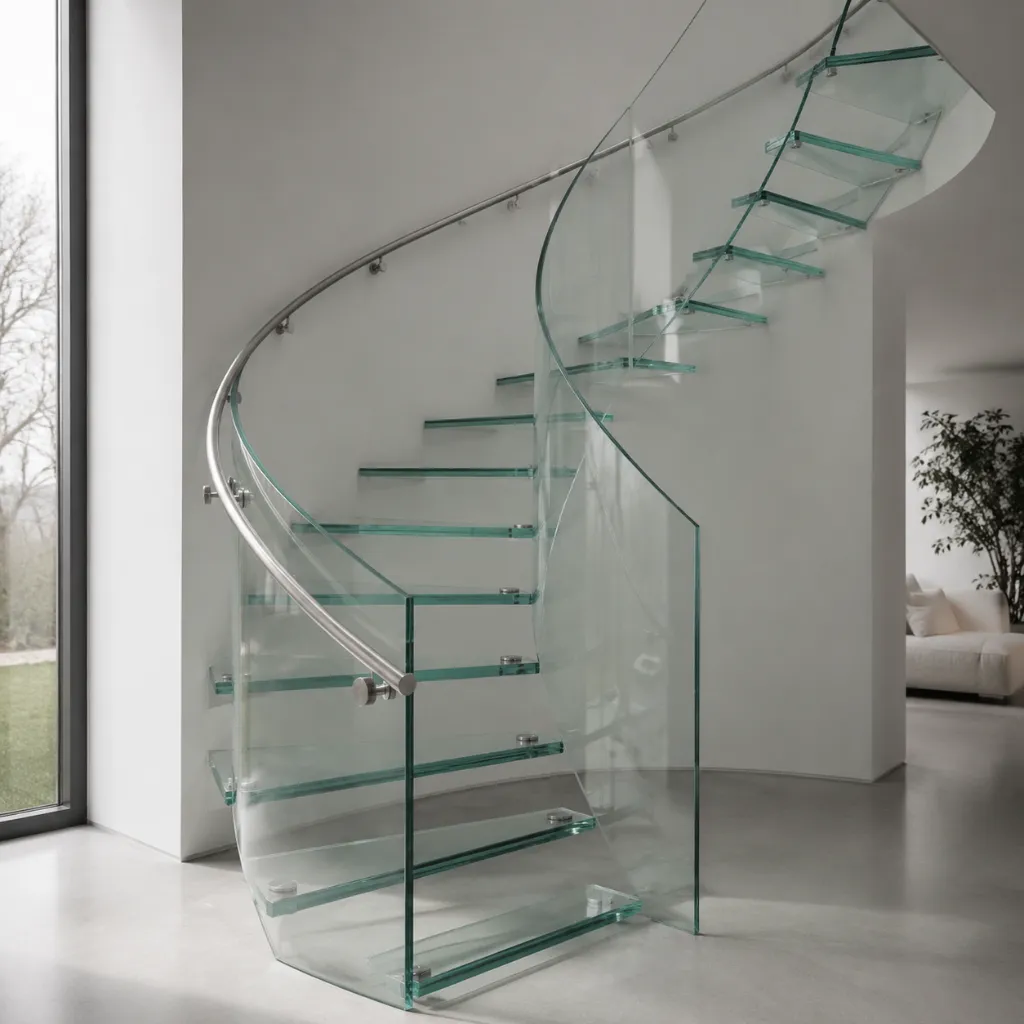

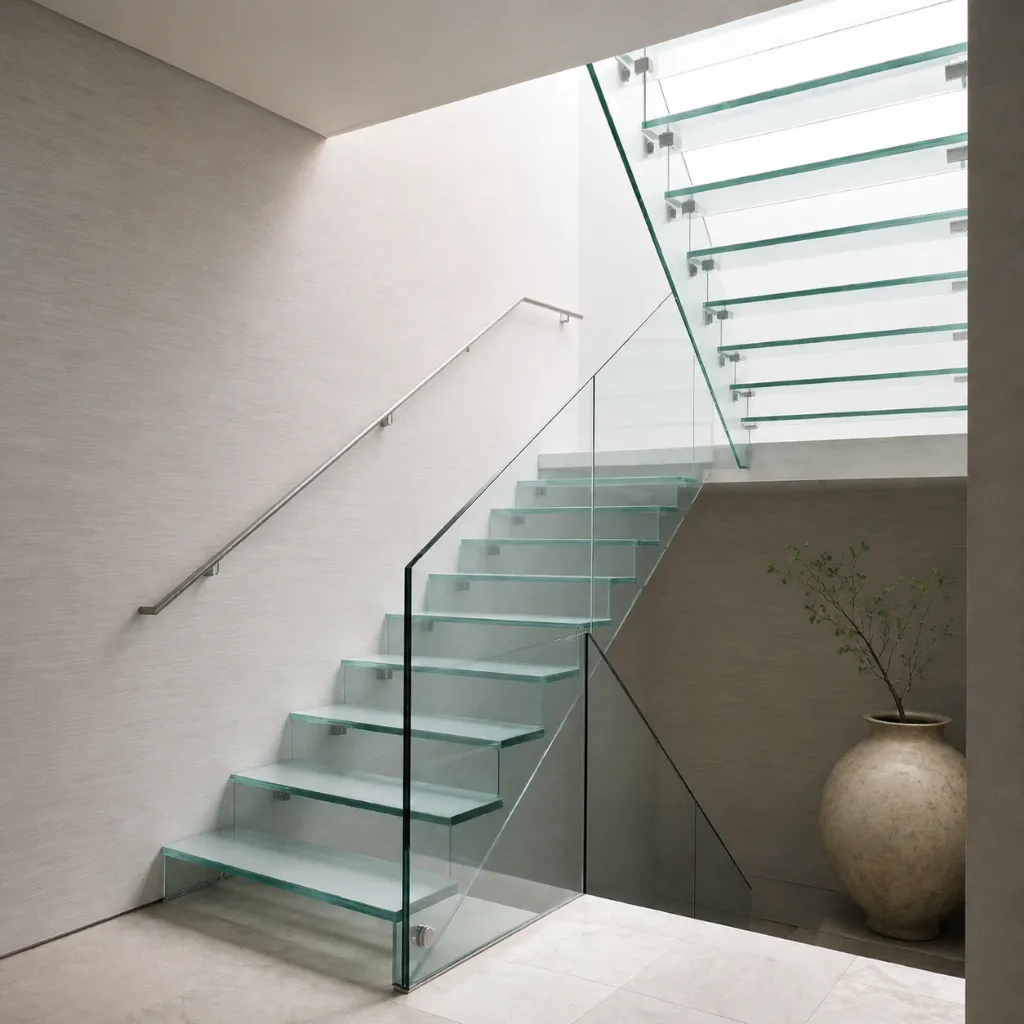

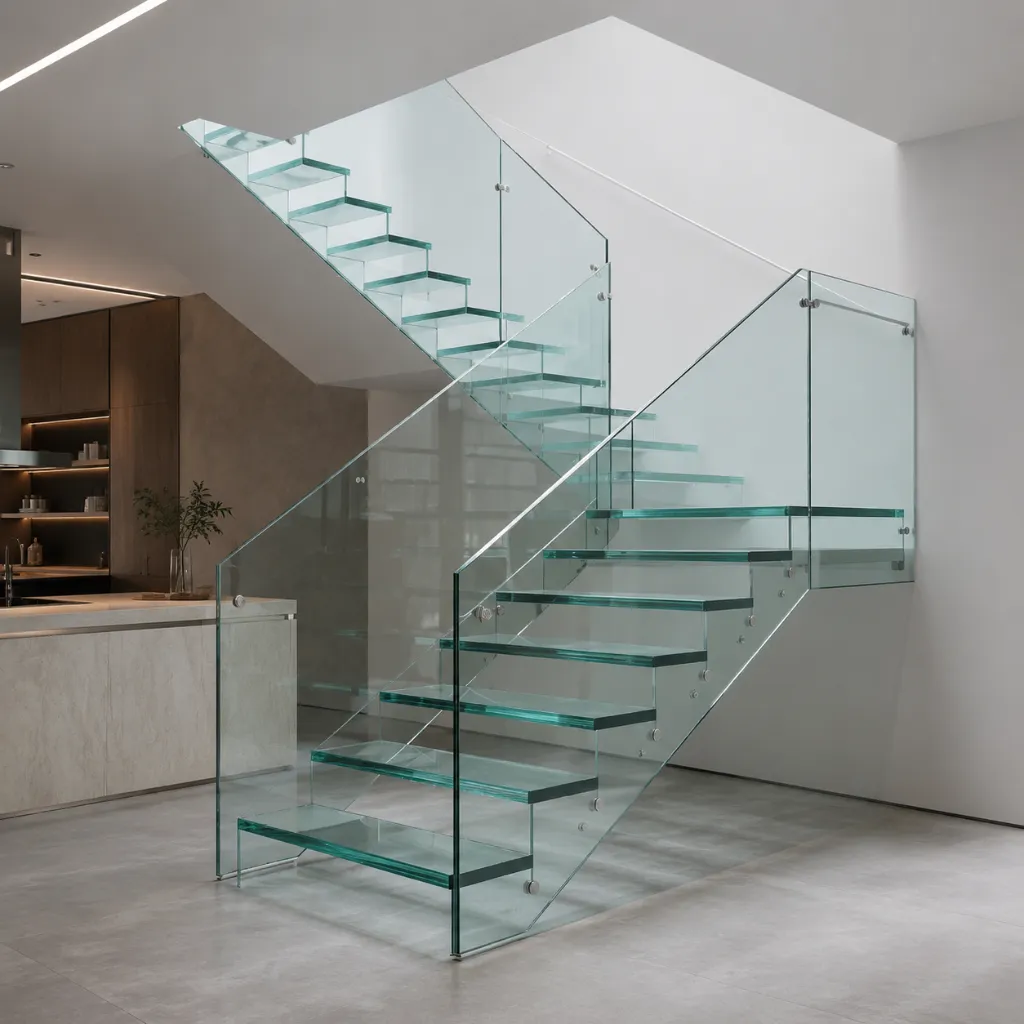

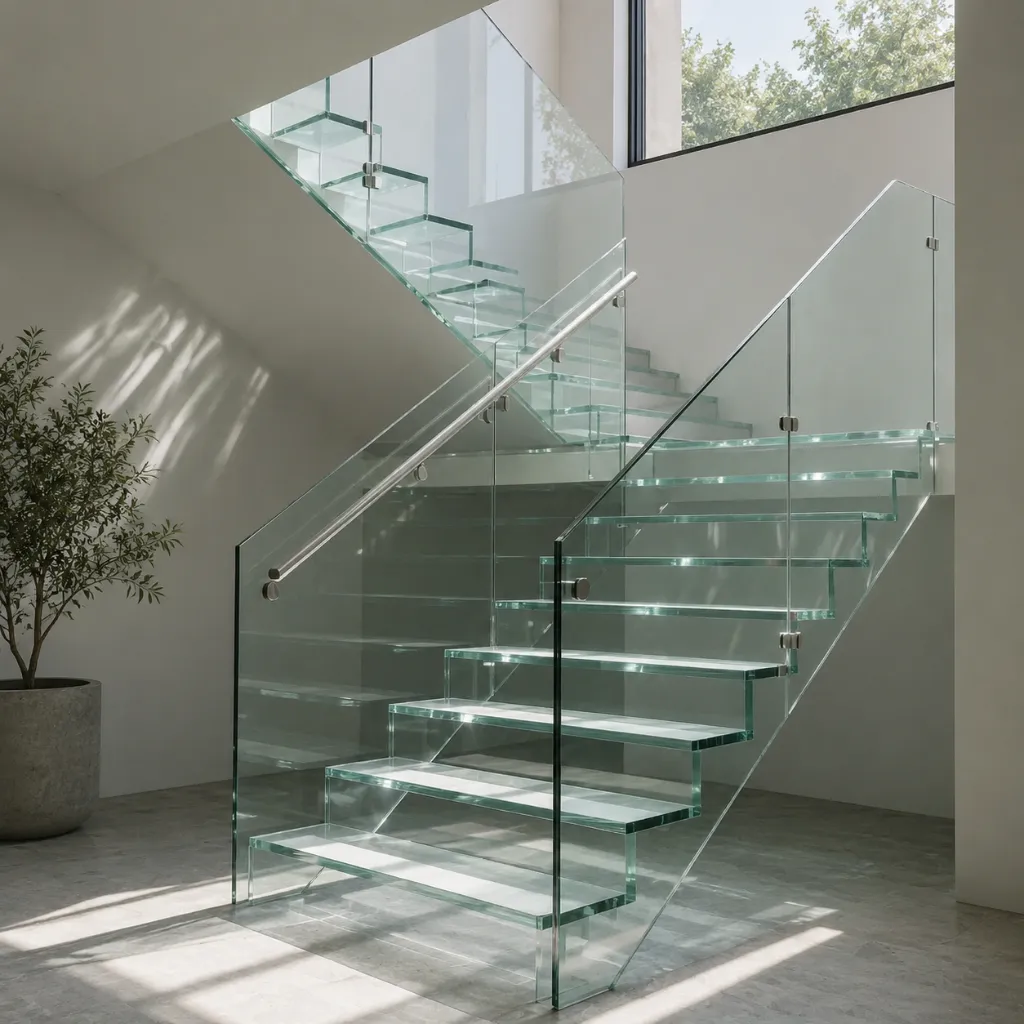

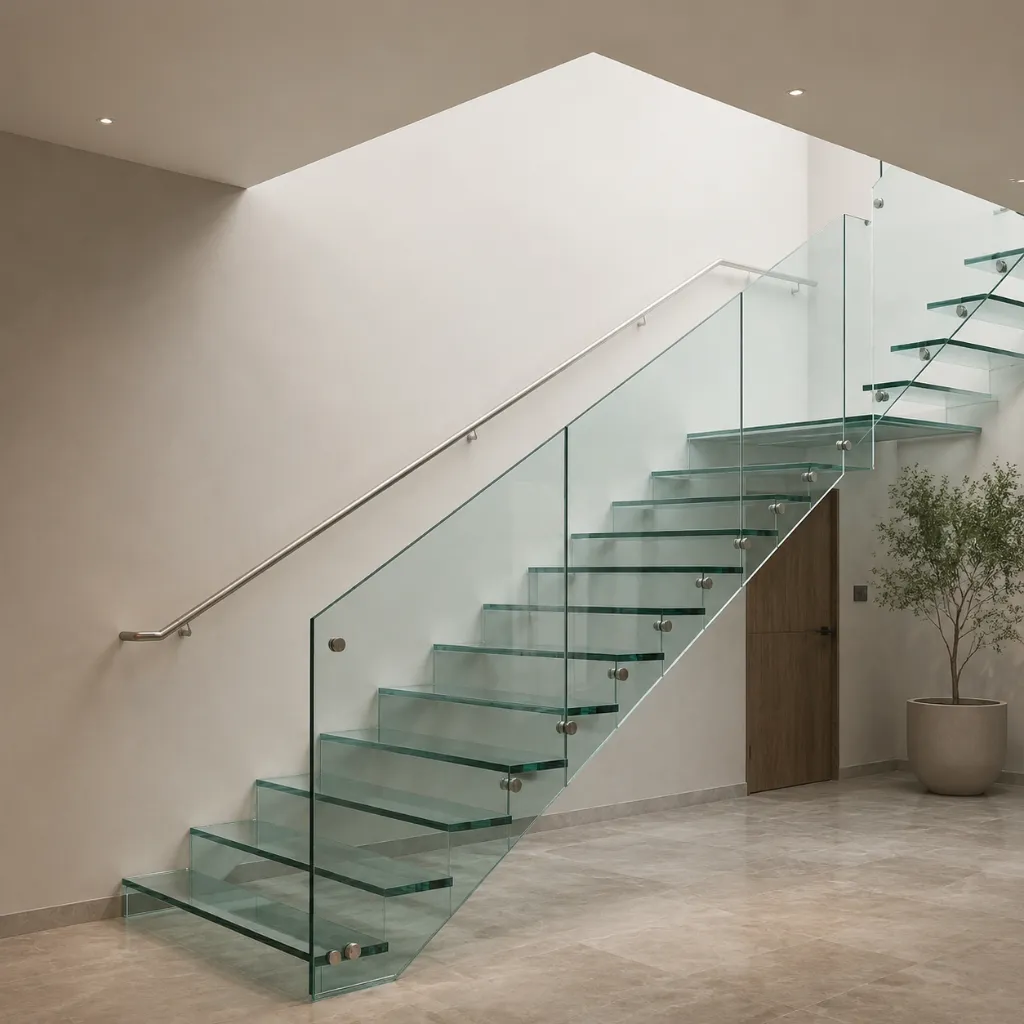

100+ Glass Staircase Ideas
Glass Staircases Project FAQs
Planning glass staircases for a building project? These questions cover product selection, site coordination and the information our team needs before production.
Is ordinary tempered glass enough for a glass stair tread?
Glass treads need a specifically designed structural glass assembly. Laminated constructions are commonly used, but thickness, layers, supports and load requirements must be confirmed for the project by the responsible engineer.
How can a glass staircase address slipping?
Specify the intended use and expected moisture, then review suitable surface treatments and the relevant slip-performance evidence. Approve the appearance on a sample because a treatment can change the glass's transparency.
What information do you need to quote glass staircases?
Send glass build-ups, tread spans, support details and surface finishes, together with quantities, the destination and your required delivery date. We identify the details needing approval and confirm the scope, production requirements and quotation for your project.
Can we approve samples before ordering glass staircases in bulk?
Discuss the required material or finish samples and any prototype at quotation stage. We confirm availability, cost and timing for the selected products. Record the approved sample and drawing references before production so inspection has a clear basis.
Can glass staircases be coordinated with the rest of our project supply?
Yes. Sibolla combines its own factory with specialist production partners and one project supply team. We can coordinate this package with custom staircases and building materials. Confirm quantities, specifications and shipment phases together so the order follows your installation plan.
More Products for Your Project
Explore options from eight other material categories.
Wood Window
Natural wood frames for your windows.
Hardware Fittings
Small fittings that complete your bathroom.
Marble
Natural veining for interior surfaces.
Ceiling Fans Light
Air movement and overhead lighting.
Outdoor Furniture
Furniture for terraces and gardens.
Artificial Plants
Greenery accents for indoor spaces.
Blue Tile
Blue tones for a distinctive finish.
Technical Planning References
- [1] ASTM E2751/E2751M-21: supported laminated glass walkways. Public scope and significance address structural design and post-breakage retention for supported laminated glass walking surfaces; no product approval is implied.
- [2] U.S. Access Board: ABA stairway guide. An example of jurisdiction- and use-specific requirements for treads, risers, surfaces and handrails. ABA is not a universal stair code.
- [3] National Glass Association: The Importance of Fabrication Prior to Heat-Treatment. NGA warns against cutting, drilling, grinding or other glass fabrication after heat treatment because it may weaken or break the glass.
These sources explain planning principles and manufacturer examples. Confirm the applicable requirements and documentation for the selected Sibolla configuration.
